Wave Shield For Arduino Kit

We offer free worldwide shipping if you spend over $40

Wave Shield For Arduino Kit

Wave Shield For Arduino Kit


Mouser No:
485-94
Mfr. No:
94
Audio IC Development Tools Wave Shield for Arduino Kit
Datasheet:
PDF download icon Datasheet

$22.00

Quantity
Spend another $40   to get free shipping
Adding quality audio to an electronic project is surprisingly difficult.

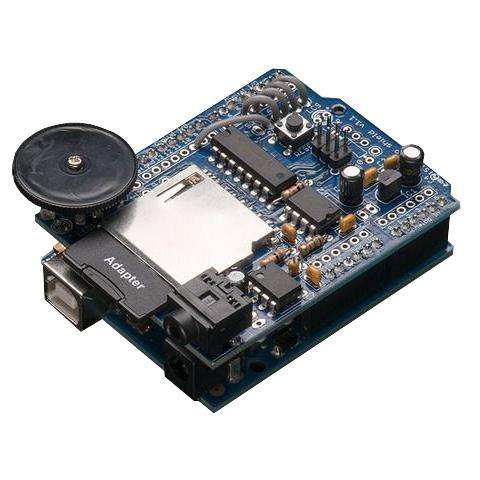

Here is a shield for Arduino 328's that solves this problem. It can play up to 22KHz 12bit uncompressed audio files of any length.

It's low cost, available as an easy to make kit. It has an onboard DAC, filter and op amp for high quality output.

Audio files are read off of an SD/MMC card, which are available at nearly any store. Volume can be controlled with the onboard thumbwheel potentiometer.

This shield is a kit, and comes with all parts you need to build it. Arduino, SD card, tools, speaker and headphones are not included.

It is fairly easy to construct and anyone with a successful soldering project under their belt should be able to build it. The shield comes with an Arduino library for easy use; simply drag uncompressed wave files onto the SD card and plug it in.

Then use the library to play audio when buttons are pressed, or when a sensor goes off, or when serial data is received, etc. Audio is played asynchronously as an interrupt, so the Arduino can perform tasks while the audio is playing.

More information, including design notes, schematics, library, examples, etc is at the Wave Shield webpage

Wave Shield For Arduino Kit
  • Description/Function - An onboard DAC, filter and op-amp for high quality output
  • Dimensions - 69 mm x 65 mm x 13 mm
  • Product - Shields
  • Type - Audio
  • Brand - Adafruit
  • For Use With - Arduino
  • Manufacturer - Adafruit
  • Product Type - Audio IC Development Tools
  • Standard Pack Qty - 1
  • Subcategory - Development Tools
  • Tool Is For Evaluation Of - ATmega328
