Grove - I2c High Accuracy Temp&humi Sensor(sht35)

Grove - I2c High Accuracy Temp&humi Sensor(sht35)


Mouser No:
713-101020592
Mfr. No:
101020592
Temperature Sensor Development Tools Grove - I2C High Accuracy Temp&Humi Sensor(SHT35)

$11.50

Quantity
Spend another $40   to get free shipping
Grove - I2C High Accuracy Temp&Humi Sensor(SHT35) is based on SHT3x-DIS, which is the next generation of Sensirion’s temperature and humidity sensors. It builds on a new CMOSens® sensor chip that is at the heart of Sensirion’s new humidity and temperature platform. The SHT3x-DIS has increased intelligence, reliability and improved accuracy specifications compared to its predecessor. Its functionality includes enhanced signal processing, two distinctive and user selectable I2C addresses and communication speeds of up to 1 MHz.

Note

We've Released the Grove Selection Guide and hope to help you find the Grove suit you best.

Features
  • High accuracy of ±1.5 %RH and ±0.1 °C
  • Fully calibrated, linearized, and temperature compensated digital output
  • I2C Interface with communication speeds up to 1MHz and two user selectable addresses
  • Very fast start-up and measurement time
Typical Applications
  • Industrial Freezers and Refrigerators
  • Food Processing
  • Personal Computers and Servers
  • PC Peripherals
  • Consumer Electronics
  • Handheld/Portable Devices

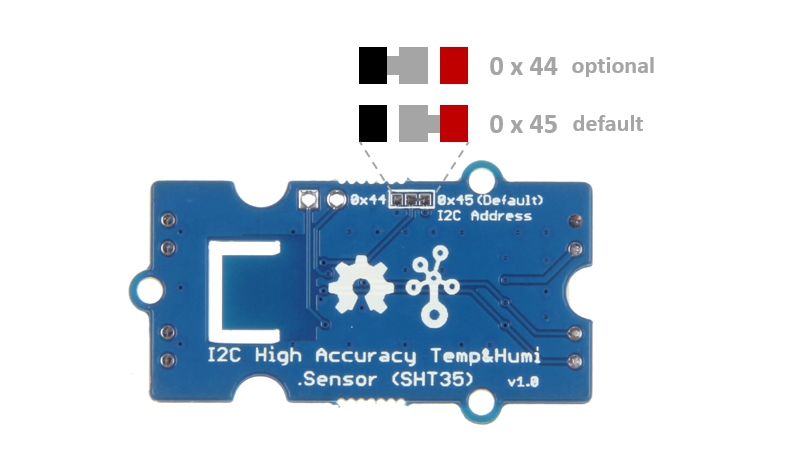

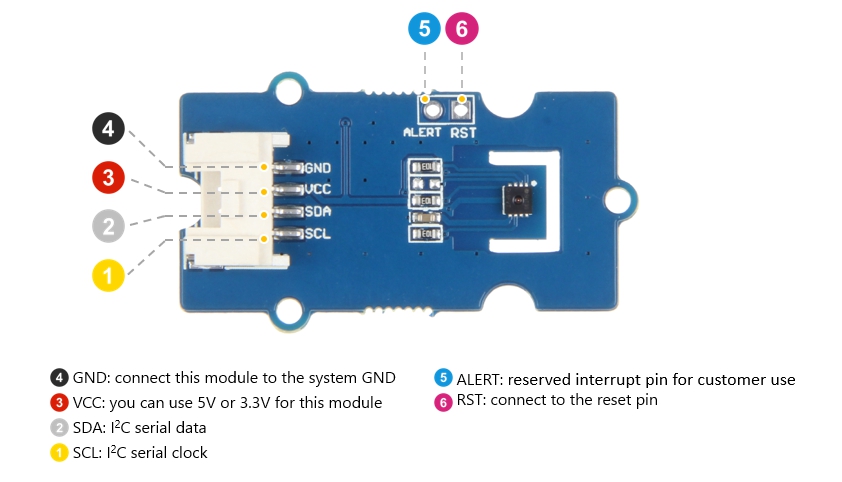

Pin Out
Grove - I2c High Accuracy Temp&humi Sensor(sht35)
  • Dimensions - 20 mm x 40 mm x 6 mm
  • Product - Add-On Boards
  • Series - Grove
  • Type - SHT35
  • Brand - Seeed Studio
  • Interface Type - I2C
  • Manufacturer - Seeed Studio
  • Maximum Operating Temperature - + 125 C
  • Minimum Operating Temperature - - 40 C
  • Operating Supply Voltage - 3.3 V/5 V
  • Product Type - Temperature Sensor Development Tools
  • Standard Pack Qty - 1
  • Subcategory - Development Tools
  • Tool Is For Evaluation Of - Humidity, Temperature Sensor
  • Tradename - Grove
