Esp8285 01m Wi-fi Soc Module

Esp8285 01m Wi-fi Soc Module

Mouser No:
Mfr. No:
WiFi Modules - 802.11 ESP8285 01M Wi-Fi SoC Module
PDF download icon Datasheet


Spend another $40   to get free shipping


Seeed fusion offers PCB/ PCBA manufacturing service for customized products based on Seeedstudio ESP8285 Wi-Fi SoC Module with an online instant quote and fast delivery. Furthermore, business users can enjoy a free prototype and engineer support as well. Click here to learn more!

ESP-01M can be widely used in various occasions for networking, home automation, industrial wireless control, baby monitors, wearable electronics, infinite position sensing device, wireless positioning system, signal and other networking applications, networking applications is the ideal solution.ESP-01M uses the DIP plug-in package, the unique design, so that it can be flexible docking to existing products, especially suitable for automation, large-scale, modern production of low cost, convenient application in various networking hardware terminal applications.Features
  • The smallest 802.11b/g/n Wi-Fi SoC module
  • Uses low power 32bit CPU and compatible with application processor
  • Main frequency up to 160MHz
  • Built in 10Bit high precision ADC
  • Support UART/GPIO/PWM/ADC interface
  • Integrate Wi-Fi MAC/BB/RF/PA/LNA
  • Support multiple sleep modes
  • Standby power consumption as low as 1.0mW
  • Embedded Lwip protocol stack
  • Support STA/AP/STA+AP work model
  • Support Smart Config/AirKiss
  • Series Rate up to 4Mbps
  • Universal AT instruction
  • Support serial local upgrade and remote firmware upgrade

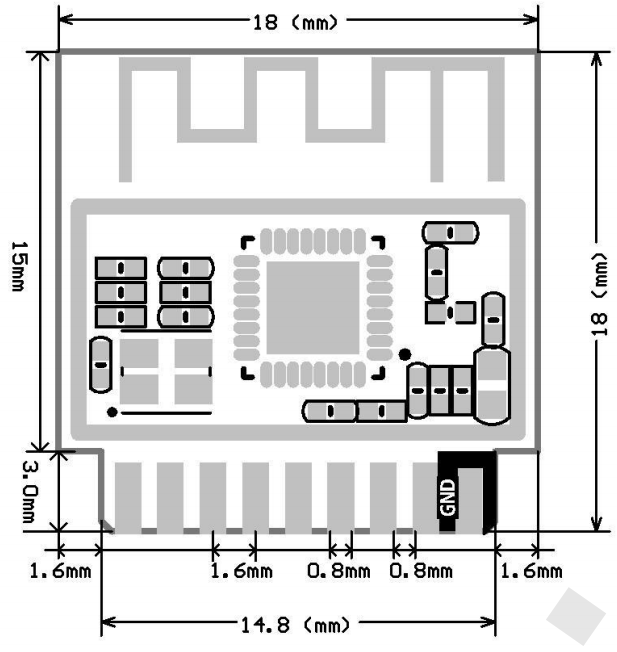

  • Small size 18*18*2.8mm
Esp8285 01m Wi-fi Soc Module
  • Data Rate - 11 Mb/s, 54, Mb/s, 72 Mb/s
  • Frequency - 2.412 GHz to 2.484 GHz
  • Output Power - 14 dBm, 17 dBm, 20 dBm
  • Security - WEP, WPA-PSK, WPA2-PSK
  • Brand - Seeed Studio
  • Interface Type - GPIO, SPI, UART
  • Antenna Connector Type - PCB
  • Manufacturer - Seeed Studio
  • Maximum Operating Temperature - + 85 C
  • Minimum Operating Temperature - - 20 C
  • Operating Supply Voltage - 3 V to 3.6 V
  • Product Type - WiFi Modules
  • Protocol - WiFi - 802.11 - WiFi
  • Protocol Supported - 802.11 b/e/g/i/n
  • Standard Pack Qty - 1
  • Subcategory - Wireless & RF Modules
