Seeed Studio GD32 RISC-V
Seeed Studio GD32 RISC-V

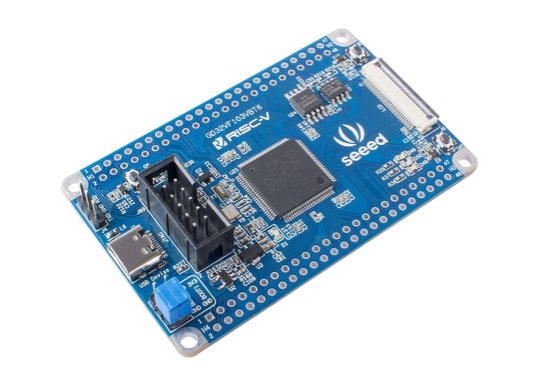

The new SeeedStudio GD32 RISC-V Dev Board equipt with a more powerful GD32VF103VBT6 MCU and has more I/O resources, onboard flash, communication interface, etc. Simply put, more power, more possibility! You can even try GUI with this board. SeeedStudio GD32 RISC-V Dev Board is based on GD32VF103VBT6 MCU which can run at up to 108MHz.
GD32VF103 device is a 32-bit general-purpose microcontroller based on the RISC-V core, it provides128 KB on-chip Flash memory and 32 KB SRAM memory. Meanwhile, it provides a wealth of interface resources: 5x U(S)ART, 2 x I2C, 3 x SPI, 2 x I2S, 2 x CAN2.0, 1 x USBFS. SeeedStudio break out all the I/O Pins(80 GPIOs in total) of GD32VF103, which will meet your diverse development needs.
With the onboard 8MB flash and 256Byte EEPROM, you can implement more complex applications. Moreover, we provide a wealth of peripheral resources on the development board, including an LCD, a type c USB port, a TF card slot, two user buttons, and three user LEDs.
Read our article: SeeedStudio GD32 RISC-V Specs and More
Good reason to buy
SeeedStudio GD32 RISC-V Dev Board is based on GD32VF103VBT6 MCU which can run at up to 108MHz, it's the first Seeed RISC-V board run GUI.
Specifications
TYPE
Microcontroller
PRICE
$6.90
SOFTWARE
PlatformIO
ARCHITECTURE
32bit
CLOCK SPEED
108
PROCESSOR
RISC-V
I/O PINS DIGITAL
80
WIFI / ETHERNET
N/A
VIDEO
LCD Interface
BLUETOOTH
N/A
DIMENSIONS
75.52mm x 47mm
MEMORY
32KB RAM
