Raspberry Pi 4B - Media Centre Kit - 4GB


Mouser No:
713-110061129
Mfr. No:
110061129
Single Board Computers Raspberry Pi 4B - Media Centre Kit - 4GB

$100.00

Quantity

Are you interested in Amazon Echo? How can a maker resist the temptation not to build one by yourself? Wouldn't it be awesome to build a music player? Trying to set up a Plex Media Server at an affordable price? Is it possible to install Kodi to turn raspberry pi into a home media centre? Can you build your own Raspberry Pi Pirate Radio? There is no " impossible" in a maker's dictionary, not to mention a maker with a Raspberry pi 4.

Raspberry pi is an excellent choice for building a cost-effective media centre. There are a lot of tutorials on Electromaker to teach you how to build a home media centre with Raspberry pi. For Raspberry pi 4, we have set up a raspberry pi media centre kit with Seeed's respeaker 2-Mics Pi HAT and Mono enclosed Speaker. There two parts enable your raspberry pi the function of listening and speaking. Imagine you go into your room and talk to the mirror, and it tells you lastest news. You can make it come true easily with this kit.

The Raspberry Pi 4 Media Centre kit includes

  • Raspberry Pi 4 Computer Model B 4GB
  • Wall Adapter Power Supply - 5VDC 3A Type-C
  • Micro SD Card with Card Reader-32GB(Class 10)
  • ABS H-Type Black Case for Raspberry Pi 4 B
  • Micro HDMI to Standard HDMI Male Cable - 1m(Support Pi 4)
  • Cat6 Ethernet Cable - 1 Meter
  • ReSpeaker 2-Mics Pi HAT
  • Mono Enclosed Speaker - 2W 6 Ohm

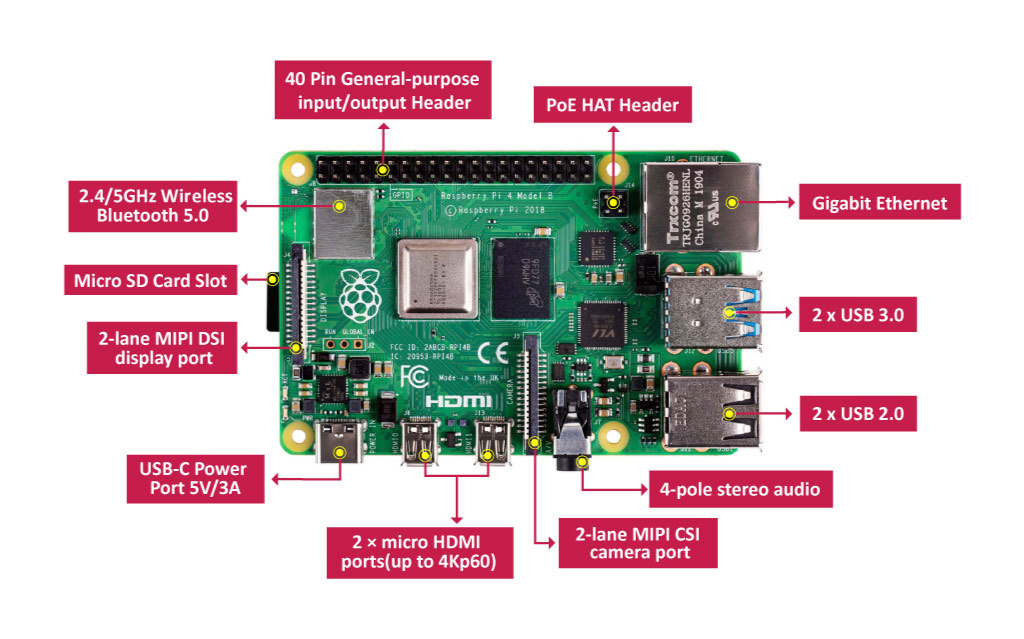

Specification

  • Processor:   Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • Memory:    1GB, 2GB or 4GB LPDDR4(depending on model)
  • Connectivity:
  • 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless
  • LAN, Bluetooth 5.0, BLE
  • Gigabit Ethernet
  • 2 × USB 3.0 ports
  • 2 × USB 2.0 ports
  • GPIO:    Standard 40-pin GPIO header(fully backwards-compatible with previous boards)
  • Video & Sound:
  • 2 × micro HDMI ports (up to 4Kp60 supported)
  • 2-lane MIPI DSI display port
  • 2-lane MIPI CSI camera port
  • 4-pole stereo audio and composite video port
  • Multimedia:
  • H.265 (4Kp60 decode)
  • H.264 (1080p60 decode, 1080p30 encode)
  • OpenGL ES, 3.0 graphics
  • SD card support:    Micro SD card slot for loading operating system and data storage
  • Input power:
  • 5V DC via USB-C connector (minimum 3A)
  • 5V DC via GPIO header (minimum 3A)
  • Power over Ethernet (PoE)–enabled(requires separate PoE HAT)
  • Environment:    Operating temperature 0–50ºC
Raspberry Pi 4B - Media Centre Kit - 4GB
  • Memory Type - LPDDR4
  • Processor Type - BCM2711
  • Brand - Seeed Studio
  • Interface Type - HDMI, LAN, MIPI, USB
  • Core - ARM Cortex A72
  • Installed RAM - 4 GB
  • Manufacturer - Seeed Studio
  • Maximum RAM Capacity - 4 GB
  • Number of Cores - 4 Core
  • On-Board Storage Size - 32 GB
  • On-Board Storage Type - Micro SD
  • Operating Supply Voltage - 5 V
  • Processor Brand - Broadcom
  • Product Type - Single Board Computers
  • Subcategory - Computing
