Raspberry Pi 4 Computer Model B 8gb

Raspberry Pi 4 Computer Model B 8gb


Mouser No:
713-102110421
Mfr. No:
102110421
Single Board Computers Raspberry Pi 4 Computer Model B 8GB

$92.50

Qty
Quantity
Spend another $40   to get free shipping

Features

  • High performance 1.5GHz Quad Core 64 bit Arm Cortex A72 CPU
  • Highest RAM for a Raspberry Pi 8GB
  • Dual band 2.4GHz/5GHz Wi Fi Bluetooth 5.0 for faster connectivity
  • High speed Gigabit Ethernet Connector
  • Rich I/O peripherals to further expand your projects
  • Dual monitor support with up to 4K60P
  • PoE Compatibility via a separate PoE HAT
  • Description

    Raspberry Pi 4 is the latest member of the popular Raspberry Pi family of computers.

    It offers a ground breaking increase in processor speed, multimedia performance, memory, and connectivity compared to the prior generation Raspberry Pi 3 Model B while retaining backward compatibility with similar power consumption. For the end user, Raspberry Pi 4 provides desktop performance comparable to entry level x86 PC systems.

    This has a high performance 1.5GHz Quad Core 64 bit Arm Cortex A72 CPU with 8GB RAM and this is the highest RAM ever offered by a Raspberry Pi.

    It has dual band 2.4GHz/5GHz Wi Fi, Bluetooth 5.

    0, and a high speed Gigabit Ethernet for faster communication. Also, the rich I/O peripherals allow it to be very useful in advanced projects.

    This Raspberry Pi supports dual monitors with up to 4K60P resolution and it has more features compared with the exciting Raspberry Pis released so far. Utilizing the same computing power of the Raspberry Pi 4 Model B, Broadcom BCM2711 processor, Raspberry Pi Compute Module 4 is also available now at Seeed.

    There is dual HDMI, PCIe, Onboard Gigabit Ethernet, and eMMC that comes with the Compute Module 4 has optional onboard eMMC of 8GB, 16GB, or 32GB, starting from 25. Compute Module 4 is smaller in shape and suitable for integration into products.

    Raspberry Pi 4 Add onsWe have released a lot of add ons in the past for the Raspberry Pi. All these hats, displays, cases, power suppliers, and other accessories will give your Raspberry Pi more features and possibilities.

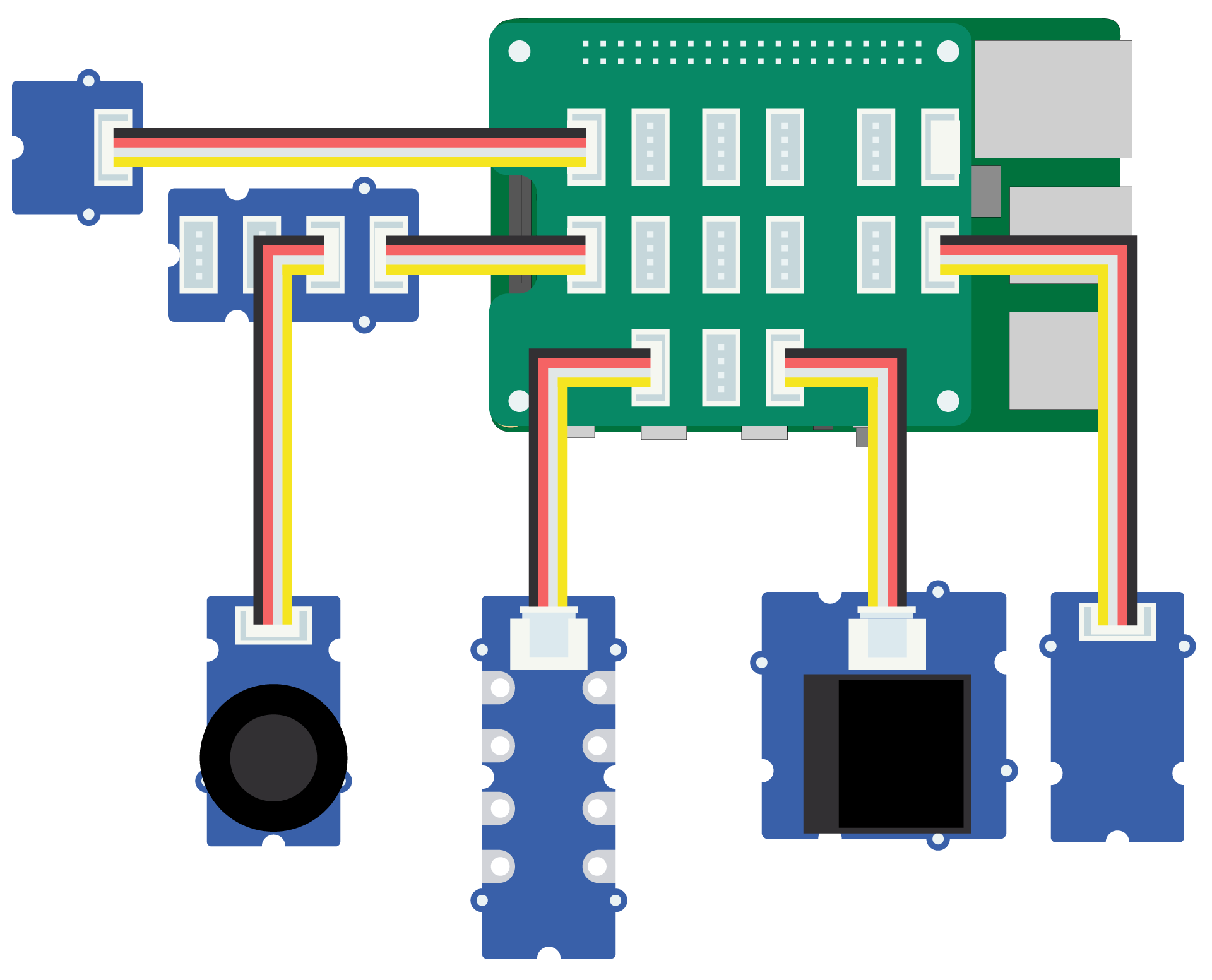

    For Raspberry Pi 4, we especially recommend the Grove Base Hat for Raspberry Pi, which enables the Raspberry Pi to interact with our Grove Ecosystem. You can easily use most of the Grove modules with your Raspberry Pi 4 and build exciting projects! Please use this table on GitHub to check if the Grove modules and sensors are compatible with Raspberry Pi.

    Raspberry Pi 4 KitsCompatible with re computer caseWe have released re computer case which is specially designed for the re computer system and it is suitable to use with the Raspberry Pi 4 as well. The re computer case can not only install the ODYSSEY X86 board, we have designed and left screw holes for the installation of the most popular SBCs including Raspberry Pi, BeagleBone, and Jetson Nano.

    Specifications

  • Processor: Broadcom BCM2711, quad core Cortex A72 ARM v8 64 bit SoC 1.5GHz
  • Memory: 8GB
  • Connectivity:
  • 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless
  • LAN, Bluetooth 5.0, BLE
  • Gigabit Ethernet
  • 2 USB 3.0 ports
  • 2 USB 2.0 ports
  • GPIO: Standard 40 pin GPIO header fully backward compatible with previous boards
  • Video Sound:
  • 2 micro HDMI ports up to 4Kp60 supported
  • 2 lane MIPI DSI display port
  • 2 lane MIPI CSI camera port
  • 4 pole stereo audio and composite video port
  • Multimedia:
  • H.265 4Kp60 decode
  • H.264 1080p60 decode, 1080p30 encode
  • OpenGL ES, 3.0 graphics
  • SD card support: Micro SD card slot for loading operating system and data storage
  • Input power:
  • 5V DC via USB C connector minimum 3A
  • 5V DC via GPIO header minimum 3A
  • Power over Ethernet PoE enabled requires separate PoE HAT
  • Environment: Operating temperature 0 50 C
  • Compliance: For a full list of local and regional product approvals, please visit https://www.raspberrypi.org/documentation/hardware/raspberrypi/conformity.md
  • Production lifetime: The Raspberry Pi 4 will remain in production until at least January 2026.
  • Raspberry Pi 4 Computer Model B 8gb
    • Frequency - 1.5 GHz
    • Processor Type - BCM2711
    • Brand - Seeed Studio
    • Core - ARM Cortex A72
    • Installed RAM - 8 GB
    • Manufacturer - Seeed Studio
    • Maximum Operating Temperature - + 50 C
    • Maximum RAM Capacity - 8 GB
    • Minimum Operating Temperature - 0 C
    • Number of Cores - 4 Core
    • Operating Supply Voltage - 5 V
    • Processor Brand - Broadcom
    • Processor Series - Raspberry Pi 4
    • Product Type - Single Board Computers
    • Standard Pack Qty - 1
    • Subcategory - Computing
